Mining machinery-crushing and screening equipment

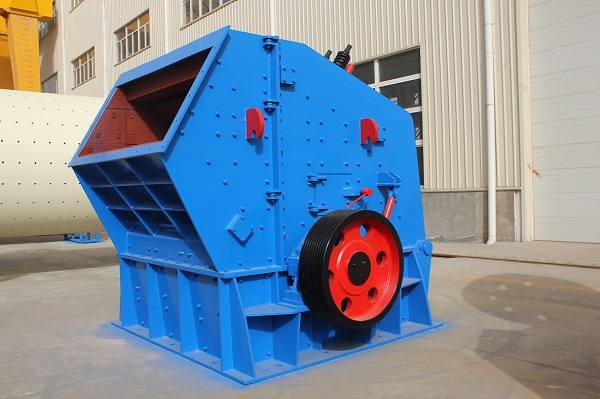

Impact Crusher
Impact Crusher
Product Model: Various specificiations for choice
Production capacity: 30 - 250 t/h
Material: river pebbles, rocks, granite, basalt, ore tailing, river gravel, granite, basalt, iron ore, limestone, quartz, diabase, marble, copper ore, and etc.
The impact crusher is widely used in the first and secondary crushing process to procss a variety of rocks and mineral ores. It is featured with high crushing ratio,large output,low costs and other advantages.
Structural features of impact crusher
1. Adoption of advanced manufacturing processes and selection of high-end raw materials.
2. Heavy type rotor design and strict testing method to guarantee high quality rotor.
3. Adoption of the Integral cast steel structure on bearing seat makes it matches well with the crushing frame and increases the radial strength of it, while the divided design does not has this advantage.
4. The unique fixing device for hammers,make it more reliable.
5. The hydraulic adjusting device makes the maintenance easier and less.
6. Self-equipped open-top device can quickly complete the replacement of wearing parts such as the hammer.
7. Selection of the bearing with larger size and higher load.
Advantages of impact crusher
1.Economical and durable to apply.
2.Complete function and high production.
3.Simple structure, small volume, little weight.
4.Low power consumption and high efficiency.
5.High crushing ratio saves the equipment fee of the dressing plant.
6.The chromium plate hammer is featured with shock resistance, abrasion resistance and great impacting force.
7.It is simple to adjust the space between the impact plate and the plate hammer, so material size is easy to control and with good particle
| Model | Specifications (mm) | Feed opening (mm) | Max.feeding side length (mm) | Capacity (t/h) | Power (kw) | Total weight (t) | Dimensions ( L×W×H) (mm) |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 37-45 | 12 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 45-55 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 130-250 | 200 | 27 | 3180×2720×2620 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 300-550 | 315-400 | 50.6 | 3959×3564×3330 |
| PF-182 | Φ1800×2000 | 1260×2040 | 700 | 600-800 | 630-710 | 83.21 | 4400×3866×4009 |
