Mining machinery-crushing and screening equipment

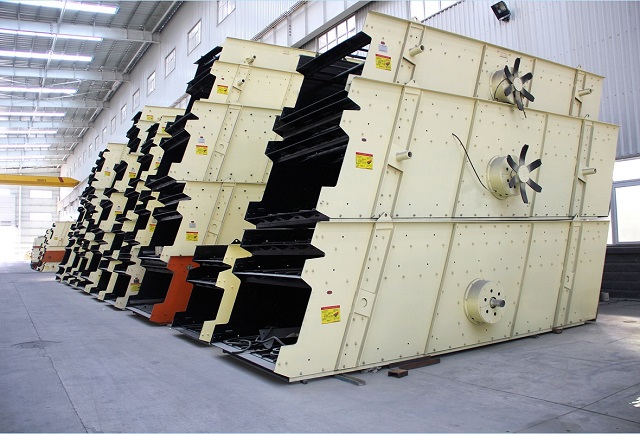

Circular Vibrating Screen
Circular Vibrating Screen
Product Model: Various specificiations for choice
Production capacity: 8-800(m3/h)
Material: River gravel, granite, basalt, iron ore, limestone, calcite, quartz, diabase, and etc.
The circular vibrating screen is a high-efficiency and new-type vibrating screen featured by circular vibration and multi-layers This type of vibrating screen is specially designed for screening material stone of a quarry, and widely used for product classification in mining, building materials, transportation, energy, chemical products industries.
Introduction of circular vibrating screen:
The circular vibrating screen is a high-efficiency and new-type vibrating screen featured by circular vibration and multi-layers This type of vibrating screen is specially designed for screening material stone of a quarry, and widely used for product classification in mining, building materials, transportation, energy, chemical products industries. So, it’s a kind of ideal equipment used in the crushing and screening unit. If the screen with small boring diameter is installed, the wet and sticky material can not be screened unless the water spraying method is used.
Features of circular vibrating screen
(1) It uses cylinder-type eccentric shaft and eccentric block to make strong vibrating force.
(2) Beam is connected to the main body with bolts, has the feature of high strength.
(3) The side plate of the screen box use the steel which make the boiler, the steel have high strength and strong impact-resistance.
(4) It adopts the structure of small amplitude, high frequency, large obliquity to make the screen with high efficiency, large handing capacity, long life span, low consumption, and little noise.
Advantages of circular vibrating screen
1. Use eccentric block to produce strong exciting force.
2. Small amplitude, high frequency, large obliquity structure.
3. High efficiency, large handling capacity, long life span, little noise.
4. Less electricity power consumption.
5. Cross beam and the main body of the screen are connected with high strength screw bolts,so they have simple structure and easy maintenance.
| Model | Screen Layers | Screen area (㎡) | Screen size (mm) | Max. feeding size (mm) | Processing capacity (m3/h) | Vibrating power (r/min) | Double-amplitude (mm) | Motor power (kw) | Dip angle of screen (°) | Screen surface type (mm) | Total weight (kg) | Dimension (L×W×H) (mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3500 | 2930×1860 ×870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3850 | 3070×1860 ×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200×3000 | 4200 | 3430×1860 ×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 3570×1860 ×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 4050×1860 ×870 |
| 3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1500×3500 | 5200 | 4270×1860 ×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 5890 | 4120×2210 ×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 6700 | 4360×2210 ×1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6330 | 5120×2210 ×1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6800 | 5360×2210 ×1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 18.5 | 20 | 1500×4500 | 7800 | 5930×2210 ×2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 15 | 20 | 1500×4800 | 6980 | 5420×2210 ×1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 15 | 20 | 1500×4800 | 7700 | 5660×2210 ×1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 18.5 | 20 | 1500×4800 | 8700 | 6230×2210 ×2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800×4800 | 9080 | 5420×2550 ×1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 18.5 | 20 | 1800×4800 | 9600 | 5660×2550 ×1780 |
| 4YK1848 | 4 | 34.54 | 5-80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800×4800 | 11100 | 6290×2550 ×2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 18.5 | 20 | 1800×5400 | 10150 | 5960×2550 ×1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 22 | 20 | 1800×5400 | 10840 | 6260×2550 ×1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 30 | 20 | 1800×5400 | 12840 | 6830×2550 ×2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100×2600 | 11780 | 6720×2840 ×1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100×2600 | 12800 | 7030×2840 ×1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 37 | 20 | 2100×2600 | 14800 | 7300×2840 ×2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 37 | 20 | 2400×6000 | 15600 | 7020×3140 ×1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 37 | 20 | 2400×6000 | 17600 | 7300×3140 ×1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 45 | 20 | 2400×6000 | 19600 | 7600×3140 ×2380 |
| 2YK3072 | 2 | 14.3 | 5-100 | 400 | 200-700 | 750 | 8 | 22×2 | 20 | 3000×7200 | 23600 | 7200×4520 ×4184 |
| 3YK3072 | 3 | 21.4 | 5-100 | 400 | 230-800 | 750 | 8 | 22×2 | 20 | 3000×7200 | 25500 | 7200×4520 ×4684 |
