Mining machinery-crushing and screening equipment

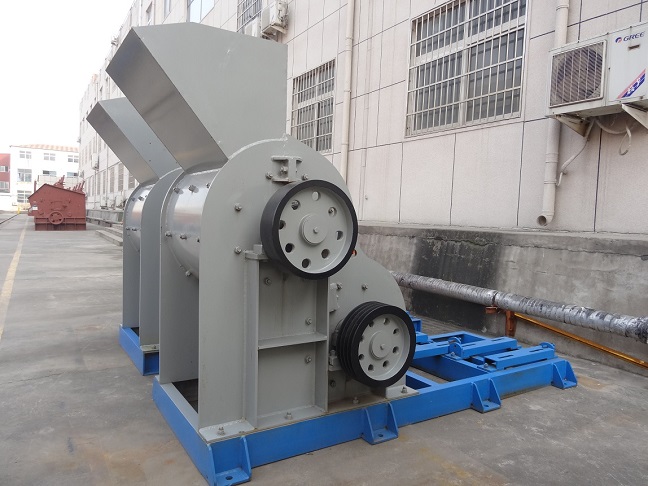

Two-stage Crusher


Features

Introduction of two-stage crusher

1. Two-stage crusher is suitable for crushing cinder, calcite, limestone, brick and tile plants, shale, coal gangue, slag, construction waste, etc.,

2. It can solve the problems of making gangue and coal cinder as additive and fuel of brickyard; using gangue and shale to produce standard bricks and hollow bricks and crushing problems of material with high moisture.

3. The machine is equivalent of the reasonable combination of two hammer crushers.

Advantages of two-stage crusher

1. Two-stage crusher has no screening device, it can crush all kinds of wet residue, even materials just dragged from water can be broken at any time, with no bonding and clogging.

2. Two-stage crusher has unique shift transfer and gap adjustment technology, wear hammer doesn’t require repair.

3. Two-stage crusher has uniform discharging particle size, high crushing ratio, high output, low energy consumption and can break more than 20 tons of materials per hour, with breaking cinder cost not exceed 1.8 Yuan per ton.

4. The crusher is suitable for crushing brittle materials, with no blocking, less dust and low noise.

5. Two-stage crusher can shorten the detention time in the crushing cavity of material, improving service life of wearing parts.

6. The side doors of the two-stage crusher can be opened freely, which makes the repair and replacement of wearing parts more efficient and convenient, reducing maintenance time.

Technical Data
Model400×600600×600800×6001000×8001200×1000
Feeding granularity
(mm)
≤100≤150≤200≤300≤400
Discharing granularity
(mm)
≤3(<2 mm accounts for 90%)≤3(<2 mm accounts for 90%)≤3(<2 mm accounts for 90%)≤3(<2 mm accounts for 90%)≤3(<2 mm accounts for 90%)
Production capacity
(t/h)
15-2520-3050-7070-9090-120
Water content in MaterialsNo specific needNo specific needNo specific need  No specific needNo specific need
Motor power
(kw)
18.5+18.5
kw-Level 4
22+22
kw-Level 4
37+45
kw-Level 4
75+55kw
kw-Level 4
90+57kw
kw-Level 4
Dimension(mm)2300×650×16802500×870×17003500×870×21803800×1800×24004400×2300×2600
