Fluid Equipment

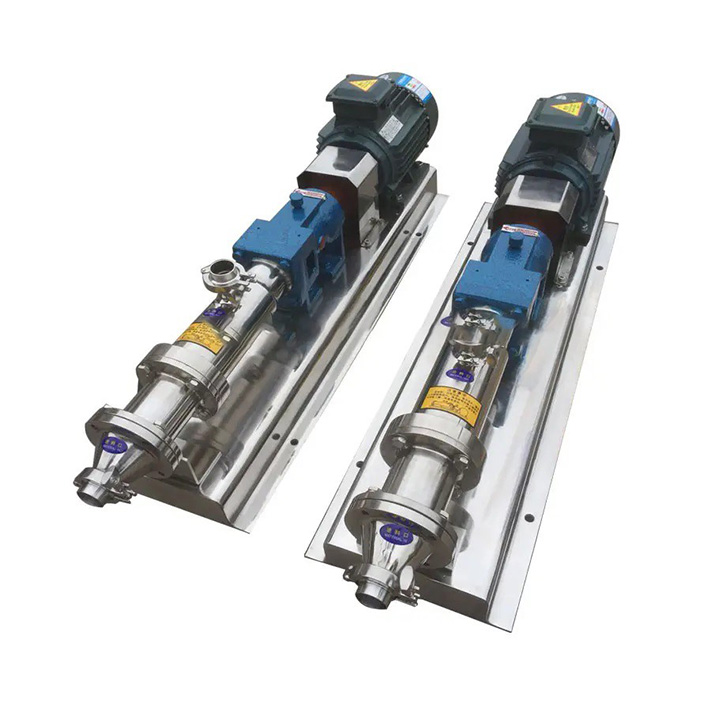

single screw pump
single screw pump
Wide Application
Single screw pump is used in all fields widely to feed kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.
Screw Structure Diagram
Round Single Screw Rotor and Stator Shape Diagram
Protruding Round Single Screw Rotor and Stator Shape Diagram
Feeding Medium
This product is applicable for feeding medium which has the following properties:
High solid content (diameter of the biggest particle is 50mm) or no solid content
Medium with all viscosities (1mPas~3,000,000mPas) Medium that is easy to be generated and swelled Shearing sensitive medium
Medium with erosion
Medium with/without self lubrication Erosive medium (PH=0~14) Adhesive medium
Toxicity hazard medium
Main Parameter
Model | Caliber (mm) | Rotation speed | Flow rate (t/h) | Electrical power | Discharge pressure (Mpa) |
G10-1 | 20 | 1400 | 0.5 | 0.37 | 0.3 |
G15-1 | 25 | 960 | 1 | 0.55 | |
G20-1 | 32 | 960 | 1.5 | 0.75 | |
G25-1 | 32 | 960 | 2 | 1.1 | |
G30-1 | 40 | 960 | 3 | 1.5 | 0.4 |
G35-1 | 50 | 960 | 5 | 2.2 | |
G40-1 | 50 | 960 | 7 | 3 | 0.6 |
50 | 720 | 5.5 | 2.2 | ||
G45-1 | 50 | 960 | 9 | 4 | |
50 | 720 | 7 | 3 | ||
G50-1 | 65 | 960 | 13 | 5.5 | |
65 | 720 | 10 | 4 | ||
G55-1 | 76 | 960 | 18 | 7.5 | |
76 | 720 | 13 | 5.5 | ||
G60-1 | 89 | 960 | 22 | 11 | |
89 | 720 | 17 | 7.5 | ||
G65-1 | 90 | 720 | 30 | 11 | |
G85-1 | 100 | 720 | 60 | 15 |
