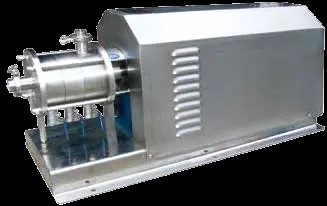

YRL3 Pipeline High Shear Dispersing Emulsifier

Operation Principle

Three sets of stators and rotors are equipped in working cavity. Driving shaft in working cavity is an arm, electrical motor and the shaft in bearing cabinet can be connected by spring coupling to improve the operation quality of driving shaft. Seal form can be selected in different conditions. It is fit for middle-large scale on-line continuous production or circulated treatment production process.

Main Parameter

A	B	C	D	E	F	G	H	I	J DN	K DN	L	Capacity(m3/h)	n-d
950	200	180	100	8	900	700	380	320	38	32	150	0-1. 5	4-Φ 16
1070	230	232	155	10	1000	800	450	390	50	40	150	0-3	4-Φ 20
1315	245	260	170	12	1250	1050	505	445	65	50	150	0-4	4-Φ 20
1370	260	260	185	12	1300	1100	505	445	65	50	150	0-5	4-Φ 20
1430	300	280	220	15	1350	1150	550	480	65	50	155	8	4-Φ 20
1870	300	300	242	15	1800	1600	590	520	100	80	160	0-12	4-Φ 20
1980	300	350	280	15	1900	1700	710	630	125	100	165	0-18	4-Φ 24
2100	305	380	300	15	2000	1800	785	705	125	100	165	0-25	4-Φ 24
2160	305	380	310	15	2050	1850	785	705	125	100	170	0-35	4-Φ 24
2370	325	415	320	20	2250	2050	900	810	150	125	170	0-50	4-Φ 28
2480	325	415	330	15	2350	2150	900	810	150	125	170	0-75	4-Φ 28
2595	325	415	340	20	2400	2200	900	810	150	125	175	0-90	4-Φ 28
2615	340	415	350	25	2400	2200	900	810	150	125	175	0-110	4-Φ 28
